Better loading states with Server-Sent Events

A couple of years ago when I was working on the first version of Prisma’s Data Platform, we built this dashboard that had a “Create Project” flow that would provision a Heroku database for you if you pressed a button. When you did, the browser would send a request to our backend, who would in turn talk to Heroku, provision the database, get credentials, and forward them to the browser, which would then display it for you.

The problem though, was that this took around 30s to finish when all was said and done. That’s an astronomically long time for a user to be looking at a spinner.

One way to address this problem is to poll your server every few seconds. This is really hard to implement though. You need some kind of state on the server, which usually involves a database, AND you’ve got more complexity on the client too. Sure, modern browsers will keep a TCP connection open with your origin if you set things up just right, but even then, you’re paying for round trips every time you poll.

Another way around this was to make the spinner a bit more interactive, make it rotate through a few phrases, like Crunching numbers, or Contacting satellite, anything that assures the user that stuff’s going down. You may have seen these as Slack / Sentry / Discord fire up. But these phrases are often superficial and (intentionally) absurd because there’s isn’t an easy way to get “live updates” from our server.

An even more complex way around this is to use WebSockets, but that sounds overkill as well, at least today.

Enter Server-Sent-Events (SSE)! They’re like one-way WebSockets, so they’re more limited, but in a really good way. SSE streams are a long running HTTP/2 response that emits events every so often. The browser can “subscribe” to these events just like a WebSocket connection. Heck, the browser even reconnects for you, which massively improves resiliency compared to WebSockets.

One pre-requisite to understanding SSE is the realization that HTTP requests and responses aren’t concrete blobs of text that you throw about in one piece. You generally break this blob up into smaller pieces, and transport these smaller pieces (that’s what a stream is). When you respond to an HTTP request from your server, you read the request’s body stream, build up a response, then send this response back in pieces (as a stream). Granted, you don’t do this, but your runtime (Node.js, or workerd, or bun) does. None of this is HTTP-specific by the way, that’s just how TCP does things.

If you’re not familiar with streams, you’d generally build up a Response in your server’s memory before sending it back, but a way to “speed things up” is to start your Response stream immediately and send that back to the client. Then you can write pieces of your actual payload as they become available. This way, your client gets the first bytes very quickly (a low TTFB), but the data arrives in a “streaming” fashion. This technique is fundamental to modern SSR-focused JavaScript frameworks (but that isn’t super relevant here).

Okay let’s set up an SSE stream on our server now (I’m using a Cloudflare Worker, but this works on Node.js as well):

const createProject = () => {
  const { readable, writable } = new TransformStream();

  return new Response(readable, {
    status: 200,
    headers: { "Content-Type": "text/event-stream" },
  });
};

The TransformStream stuff might look a little intimidating, but all we’ve done is set up a “pipe”. Anything you write to the writable end of this pipe will be forwarded to the readable end of this pipe as-is, which is the Response. More accurately, we’ve set up an “identity” TransformStream. In essence, we can append to the response after we’ve sent it back.

Also noteworthy here is the Content-Type of the response. This tells the browser to treat this response as an SSE stream instead of a regular HTTP response. This allows us to consume this stream much more easily, as we’ll see in just a bit.

So now all we need to do is to actually append to the response (AKA write to this stream), let’s do that in an asynchronous loop to begin with, and in a specific “format”, we’ll look into why we chose this format in juuust a little bit:

const createProject = () => {
  const { readable, writable } = new TransformStream();
  const writer = writable.getWriter();
  const te = new TextEncoder();

  let i = 0;
  const interval = setInterval(() => {
    writer.write(te.encode(`data: Count is\n`));
    writer.write(te.encode(`data: ${i++}\n`));
    writer.write(te.encode(`data: (${5 - i} left)\n`));
    writer.write(te.encode(`\n`));

    if (i === 4) {
      writer.close();
      clearInterval(interval);
    }
  }, 1000);

  return new Response(readable, {
    status: 200,
    headers: { "Content-Type": "text/event-stream" },
  });
};

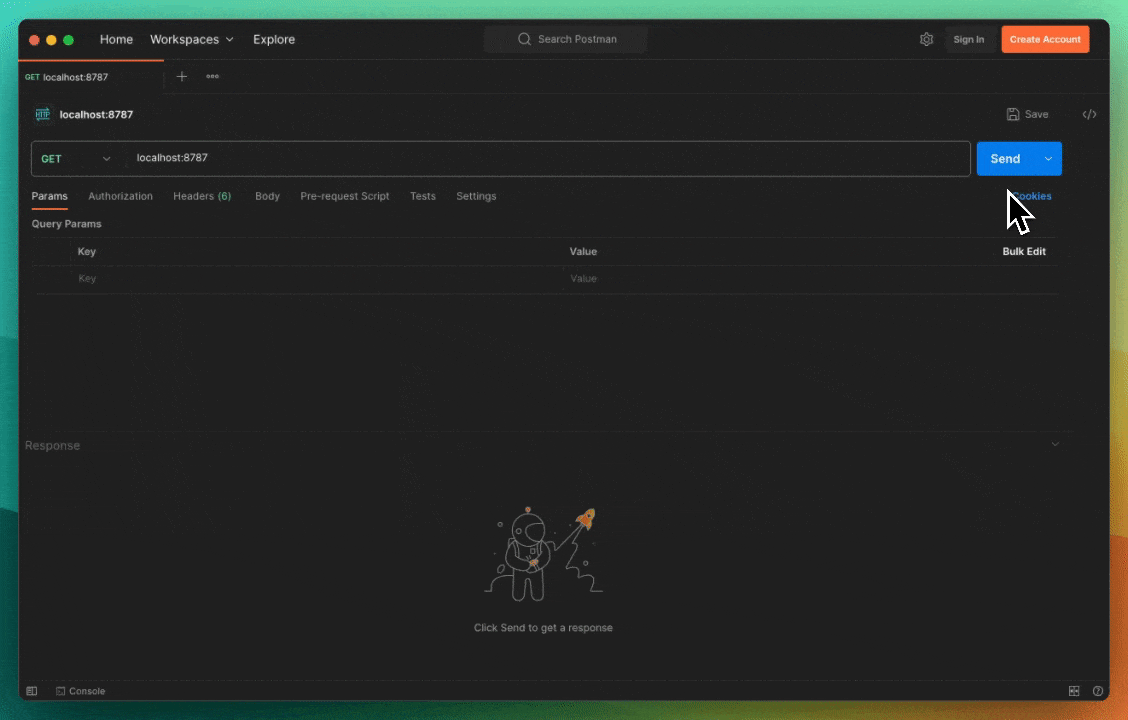

We’ll dig deeper into this code, but before we do, this is what this request looks like:

Pretty cool! We get back a message (or an “event”) every second. Every time we append to our Response, Postman sees an event.

Let’s consume this stream from our client (the browser) instead of Postman though:

const es = new EventSource(`https://localhost:8787`);
es.addEventListener("open", (e) => console.log("Stream started"));
es.addEventListener("error", (e) => console.log("Stream errored"));
es.addEventListener("message", (e) => console.log("Message:", e.data));

That’s… it. Even though this is HTTP, you don’t use fetch to consume an SSE stream. Instead, you use an EventSource. It (intentionally) looks just like a WebSocket connection. If you run this in your browser, you now get the exact same output as Postman did.

From the outside, this looks like the server calling our client whenever it wants, which is why we call this a server-sent event stream. Let’s dissect this to understand the mechanics of this.

Every “event” in an SSE stream looks like this:

data: part of\n
data: your message\n
data: goes here\n
\n

Your event can have multiple lines, but each line must be prefixed with data: , and suffixed by the newline character. An empty line indicates the end of one event. Your browser will receive this event like this:

part of\n
your message\n
goes here\n

So that’s what were doing on our server. We send back a ReadableStream immediately, but every second, we write one event to this stream. Note that you cannot actually write to a ReadableStream, which is why we need the IdentityTransformStream to begin with. Another quirk is that streams generally transport actual bytes, so we use TextEncoder to convert from human-readable text to raw bytes. But the rest should make sense now. Here it is again:

let i = 0;
const interval = setInterval(() => {
  writer.write(te.encode(`data: Count is\n`));
  writer.write(te.encode(`data: ${i++}\n`));
  writer.write(te.encode(`data: (${5 - i} left)\n`));
  writer.write(te.encode(`\n`));

  if (i === 4) {
    writer.close(); // End the stream, it has to happen _sometime_
    clearInterval(interval);
  }
}, 1000);

What you write after the data: prefix is completely up to you, and is delivered as-is to the browser, which means you can actually stuff a JSON in there:

data: { "status": "Creating Heroku project" }\n
\n

or, you could split it into multiple lines:

data: {\n
data:   "status": "Creating Heroku project"\n
data: }\n
\n

JSON.parse is indifferent to spacing, so you can JSON.parse(e.data) in your EventSource’s message handler just fine! This means you now have a way to transport structured data from the server to the client.

The only thing to note is that because this is HTTP based, SSE events are text-based as well. You cannot transport binary data (raw bytes) over an SSE stream unless they’re serializable to text.

(Someone did figure out a way to send binary data using a custom encoding though: https://github.com/luciopaiva/binary-sse. This is the kind of chaotic behaviour I can get behind.)

Soo… loading states?

Ah right. Coming back to our original problem, we can display actually useful information in our loading states by using an SSE stream. We might send back events like these from our server:

data: Connecting to Heroku\n
\n

// A few seconds later

data: Created Heroku project\n
\n

// A few seconds later

data: Provisioned database\n
\n

// A few seconds later

data: Received credentials\n
\n

There’s no databases involved, all you need to do is hold on a WritableStreamDefaultWriter reference and .write() to it for every significant thing you do. When you’re done, just .close() the writer, like we did with our setInterval.

What next?

Loading states are just one idea. I think it helps to see this as a read-only WebSocket connection, so you should be able to take this as far as a read-only Google Docs page.

I mentioned this before, but SSE streams automatically reconnect. There’s an id: field that you can attach to each event that helps to “resume” a stream. Essentially, the browser sends you the ID of the last event it received when it reconnects, and you can use that to prune the events you send back from your server. Web.dev has a cool post that goes a little deeper with this stuff here. (Note that the securty warning about origin checks is unnecesary, since it relates to postMessage)

I think SSE is extremely cool tech that unfortunately got hit with the serverless wave, where long-running responses like this can be challenging. Still sick though!
