21 February 2023


cloudflared establishes a direct connection from your device to Cloudflare’s network (referred to as a tunnel) and allows full duplex communication on both ends. What this means is that you can expose a service running on your machine to the Internet without having to open up a port / obtain a static IP / inviting attacks. It does lock you into Cloudflare’s network, but in return you get all kinds of DDoS & bot protection for free.

Little disclaimer: I do work at Cloudflare, but not on cloudflared; I just think it’s cool tech. If you’re not so keen on the lock-in, ngrok is a similar alternative, although I personally haven’t given that a shot yet.

cloudflared is a bit of a niche technology for me because I only run one “server”: my old Raspberry Pi that runs PiHole & a Samba server for archival storage of important files. This isn’t open to the Internet for safety reasons, because I don’t really consider myself competent enough to secure my Pi properly. Plus, I need a static IPv4 address, which are hard & expensive to get, especially if you just want a single one and not a whole block. This means that I can only access my files when I’m physically at home, which usually isn’t a huge deal.

Recently though, I’ve rented a Hetzner VPS for reasons that will become apparent in an upcoming post, and I wanted to obviously be able to reach it from wherever I was. There’s a Grafana instance running on there on :3000 that I wanted to be able to access on https://grafana.sdnts.dev. Here’s how I did it:

  1. I installed cloudflared on my VPS following instructions for Debian bullseye on Cloudflare’s docs.
  2. I opened up my Zero Trust dashboard, headed over to the Access > Tunnels section from the sidebar, and created a tunnel. The instructions are pretty self-explanatory, you basically just run a command on your VPS that sets cloudflared up as a systemd service, and your tunnel shows up on the dashboard.

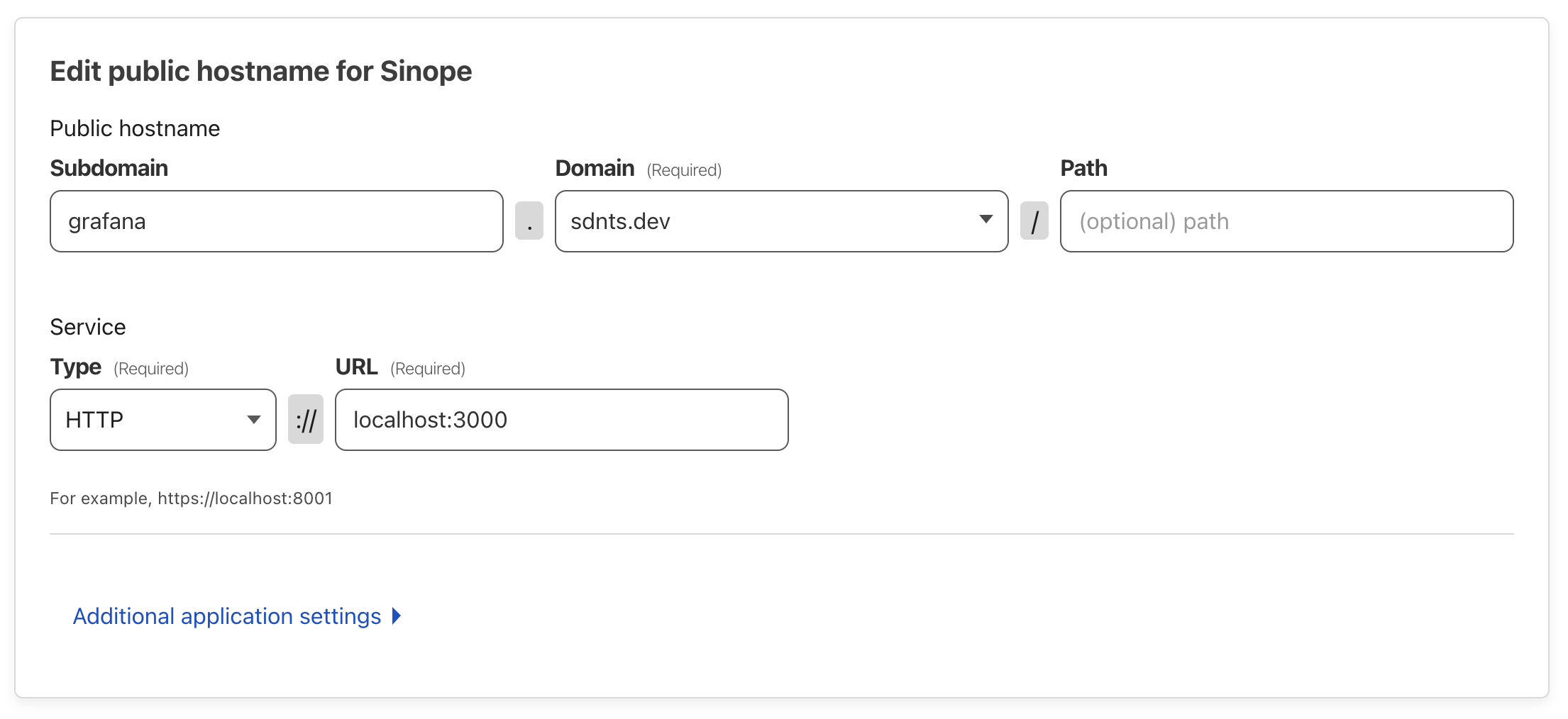

  3. On the last step, it asks you set up a public hostname, and this is where you set up a mapping from a public domain to a service running on your machine, something like this: A screenshot with text boxes that describe the mapping from the VPS's local port 3000 to the public hostname grafana.sdnts.dev. This tells cloudflared to forward all HTTP traffic on grafana.sdnts.dev to localhost:3000, pretty straight-forward, right? You can also forward other kinds of traffic if you wanted.

And that’s… it really. It takes effect almost immediately. If you visit the hostname you set up, you should be able to see your Grafana instance (or whatever you have running). Another much smaller advantage of this setup is that I can have multiple HTTP services running on my VPS, all under different hostnames, without taking up multiple IPv4 addresses.

The second half of this setup is Cloudflare Access, which basically sets up an authentication page in front of your domain, and lets you define who is allowed to access stuff behind it. I’ve set it up to force you to authenticate against GitHub, and have allow-listed only myself. This is why you the reader won’t be able to see what’s behind https://grafana.sdnts.dev, at least not yet 😄
